Media Converter

Fiber Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 20km on dual fiber optic cable.

Models

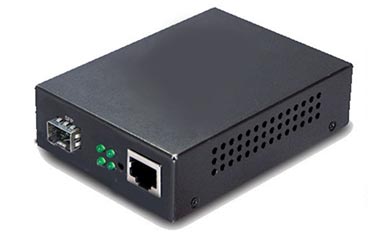

1312-SFP

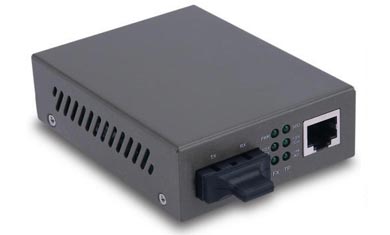

1303-20
8512-02

Features

Application

  • 10/100Mbps auto-sensed, easily upgrade
  • Full-duplex and half-duplex auto-sensed
  • MDI/MDI-X Auto Negotiation
  • 10/100Mbps store-and-forward
  • 100Mbps cut-through transmission
  • Packet size up to1518bytes
  • Supporting VLAN/VoIP/QoS packets
  • Network Communication
  • FTTH / FTTB / FTTX
  • ISP Backhaul Networking

Media Converter Specification

ModelSpecification
StandardIEEE802.3 10Base-T Ethernet, IEEE 802.3ab, IEEE 802.3z
Data RateCopper: 10/100M; Fiber: 155M
Flow controlFull duplex: flow control; Half duplex: back pressure
Cooper PortNo.s of Copper Port: 1 Connector: RJ45 Connector Distance:100m
Fiber PortNo.s of Fiber Port: 1 Connector: SC as default Wavelength: SMF: 1310nm Distance: SMF 20Km
LED indicatorsPWR; FL/A, FDX, TL/A , 100, FX (100M transmission rate of optical fiber)
Power supplyWorking power: DC5V 1A AC P.S.: 100V~ AC240V to 5V1A Or DC PS: -36~-72V to 5V1A

External / Internal Power Supply Optional
Power consumption<3W
EnvironmentOpe. temp. : -10~55°C Storage Temp.: -40~85°C Rel. Humi.: 5% to 95% non-condensing
DimensionsExternal: 94mmx70mm*26mm Internal: 140mmx110mmx30mm
Gross WeightExternal : 0.4kg Internal: 0.5kg

Media Converter Ordering Information

Part NumberInline Description
1303-2010/100M SM Dual Fiber, 1310nm, SC, 20Km, External AC220V
BI3503-2010/100M bidi TX1310/RX1550, SC, 20Km, External AC220V
BI5303-2010/100M bidi TX1550/RX1310, SC, 20Km, External AC220V
BI3503-4010/100M bidi TX1550/RX1310, SC, 40Km, External AC220V
BI5303-4010/100M bidi TX1550/RX1310, SC, 40Km, External AC220V
8512-0210/100/1000M MM Dual Fiber, 850nm, SC, 550m, External AC220V
1312-2010/100/1000M SM Dual Fiber, 1310nm, SC, 20km, External AC220V
BI3512-2010/100/1000M SM Single Fiber, T1310/1550nm, SC, 20km, External AC220V
BI5312-2010/100/1000M SM Single Fiber, R1550/1310nm, SC, 20km, External AC220V
BI3512-4010/100/1000M SM Single Fiber, T1310/1550nm, SC, 40km, External AC220V
BI5312-4010/100/1000M SM Single Fiber, R1550/1310nm, SC, 40km, External AC220V
1312-SFP10/100/1000M SFP Media Converter, without SFP, External AC220V
