Fiber/PoE Switches

A POE switch is a network switch that has Power over Ethernet injection built-in. Simply connect other network devices to the switch as normal, and the switch will detect whether they are POE-compatible and enable power automatically. POE switches are available to suit all applications, from low-cost unmanaged edge switches with a few ports, up to complex multi-port rack-mounted units with sophisticated management.

Models

0400P-1T-60W
0800P-1T-96W
8000P-2S-150W-L2
2400P-4S-440W-L2

Features

Application

  • Support power over ethernet cable device for example wireless AP and IP Camera.
  • Support IEEE802.3af/at standard.
  • Support upward port auto MDI/MDIX.
  • Support saving power function when port disconnection.
  • Adopted storage forward switch system.
  • Automatically provide the adaptive device.
  • No noise design can reduce the affect for environment.
  • Fanless design realize saving energe and environment protection.
  • With power supply circuit protection function and protection
  • Back-end device safety.
  • LAN/WAN
  • ISP/CCTV
  • Broadband Internet

Fiber/PoE Switch - Specification


Network Port4/8/16/24, 10/100/1000Mbps PoE RJ45 port (port 1 ~ port 4) (As per models) 1 10/100Mbps Non POE RJ45 port (port 5)
Transmission Rate100Mbps full duplex, 10/100Mbps Half duplex
PerformanceBandwidth: 1Gbps (no block)
POE Pin1/2 (+), 3/6(-); or customized 4/5(+), 7/8(-);
LED indicatorPower, LINK/ACT, PoE
Dimensions
MultimodeSize: (LxWxH): 92mm x 82mm x 22mm, Weight: 0.8kg
EnvironmentOperating Temperature: 0o~45oC (32o~113oF)

Storage Temperature: 20oC~90oC(-4o~194oF)

Working Humidity: 10%~90% (Non-condensing)

Storage Temperature: 5%~90% (Non-Condensing)

Fiber/POE Switch - Ordering Information

Part NumberInline Description

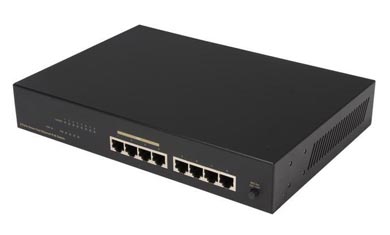

0400P-1T-60WPOE unmanaged switch, 4x10/100Mbps POE port+1x10/100Mbps uplink port, IEEE802.3af/at, 60W Power
0800P-1T-96WPOE unmanaged switch, 8x10/100Mbps POE port+1x10/100Mbps uplink port, EEE802.3af/at, 96W Power
0800P-1T-1S-96WPOE unmanaged switch, 8x10/100Mbps POE port+1x10/100/1000 uplink port +1xGigabit SFP port, IEEE802.3af/at, 96W Power

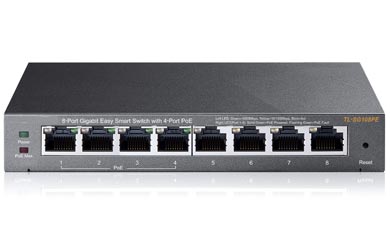

8000P-2S-150W-L2POE L2 managed switch, 8x10/100/1000 POE port+2xGigabit SFP Port, 1 console port, Managed L2 Switch, IEEE802.3af/at, 150W built-in power
1600P-4S-280W-L2POE L2 managed switch, 16x10/100/1000 POE port+4xGigabit SFP Port, 1 console port, Managed L2 Switch, IEEE802.3af/at, 280W built-in power

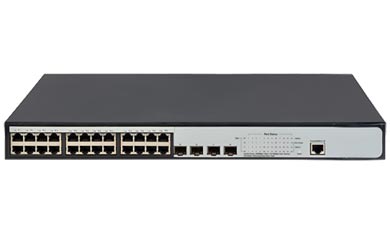

2400P-4S-440W-L2POE L2 managed switch, 24x10/100/1000 POE port+4xGigabit SFP Port, 1 console port, Managed L2 Switch, IEEE802.3af/at, 440W built-in power
